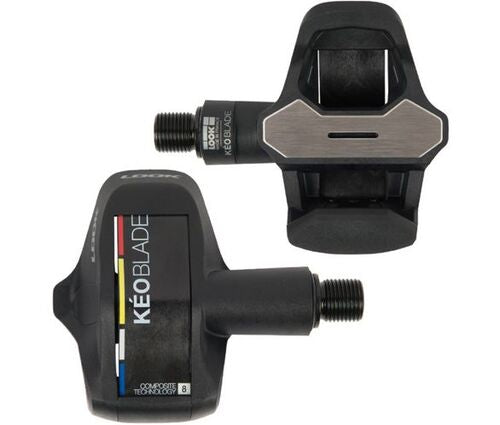

Look Keo Blade

The Blade body and blade are built from composite material. This substance makes the production of a range of less rigid blades possible   – 08 to 12 -, for a cleat engagement and release feel that falls between a metal spring and a carbon blade pedal.

The Blade brings together all the benefits of a blade pedal: crisper in and out clipping, better foot support for more security, aerodynamic shape and low weight (compared to a conventional spring system). The platform contact area has been enlarged, providing excellent pedalling stability.

Specifications:

• Body: Composite
• Axle: Chromoly steel +
• Threading: 9/16 X 20 mm
• Bearings: 2 ball bearings, 1 needle bearing cartridge
• Pedal stack height: 14 mm
• Distance pedal spindle / crank arm: 53 mm
• Contact surface area: 400 mm²
• Float: 2 types of composite blades: 8 and 12
• Cleats: Kéo Grip Cleats Grey
• Angular movement: 0 °, 4.5 ° or 9 ° according to the cleat color (Black, Grey, Red)
• Pedal weight: 120 gr (308 gr per pair with cleats and screws)
• Colours: Black
