Cervélo R5

The R5 is Cervélo's climbing bike and the one Visma take to the high mountains. In a size 56 it builds to 5.97kg, a full 900 grams under the UCI limit, and it is stiff enough to hold up under the biggest engines in the sport. The frame is 651 grams and the fork is 298 grams.

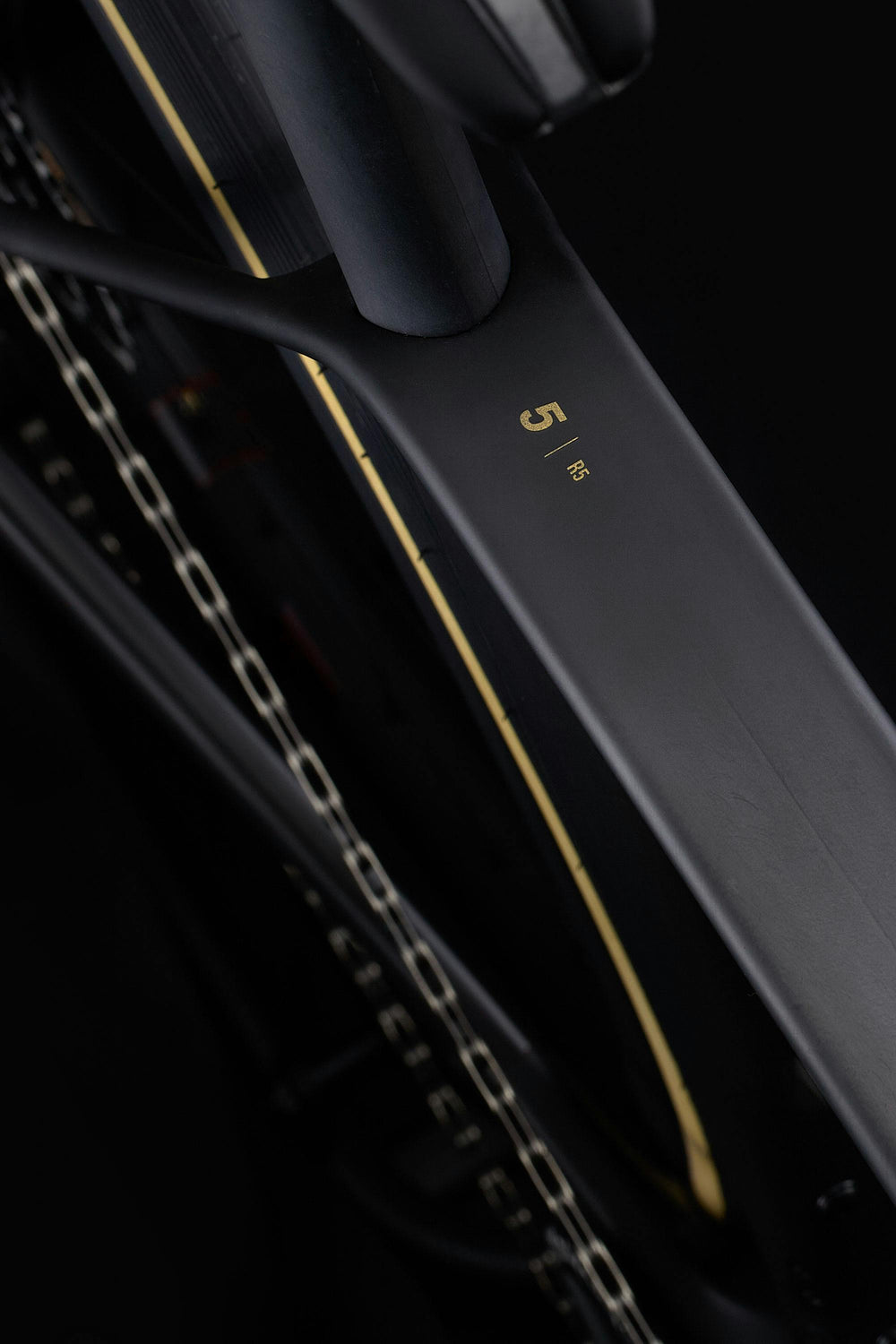

Every build shares the same frame, the HB18 one-piece carbon bar and stem and the SP33 carbon seatpost. What changes is the groupset and the hubs. Pick your build kit above.

Build kits

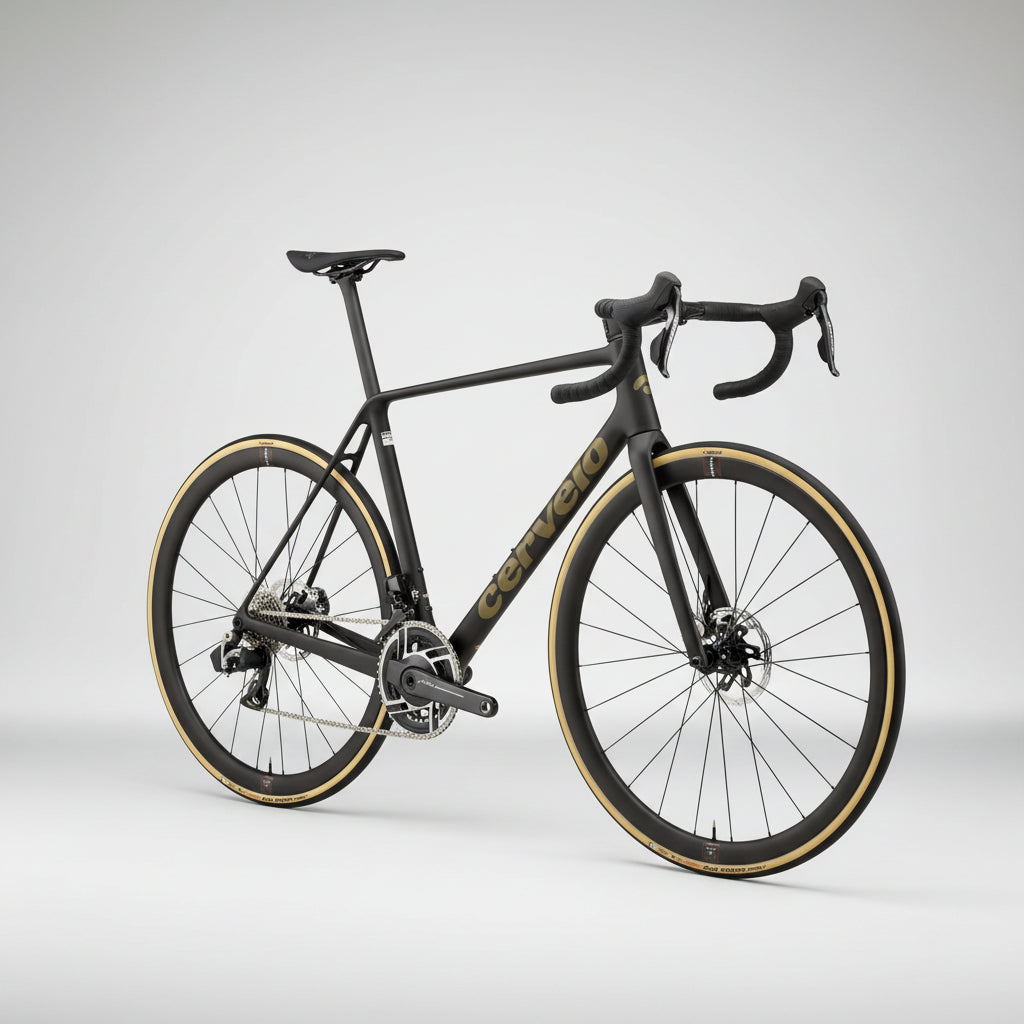

• Red AXS. SRAM Red AXS 12-speed, 48/35T, 10-33T. Power meter and ceramic BB, Reserve 34|37TA on DT Swiss 180 hubs. 5.78kg.

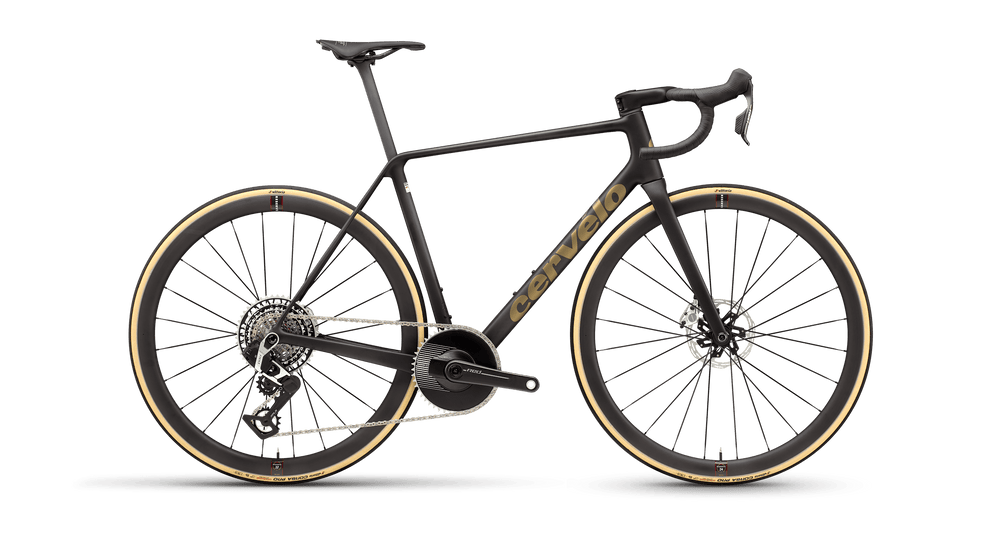

• Red XPLR AXS 1. SRAM Red XPLR AXS 1x13, 48T, 10-46T. Power meter and ceramic BB, Reserve 34|37TA on DT Swiss 180 hubs. 5.86kg.

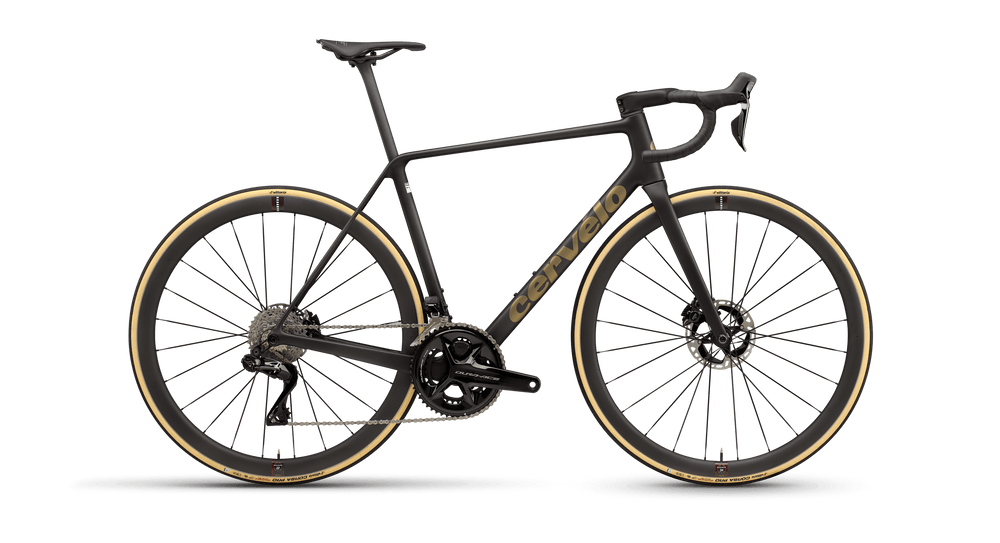

• Dura-Ace Di2. Shimano Dura-Ace Di2 12-speed, 52/36T, 11-34T. Power meter and ceramic BB, Reserve 34|37TA on DT Swiss 180 hubs. 5.99kg.

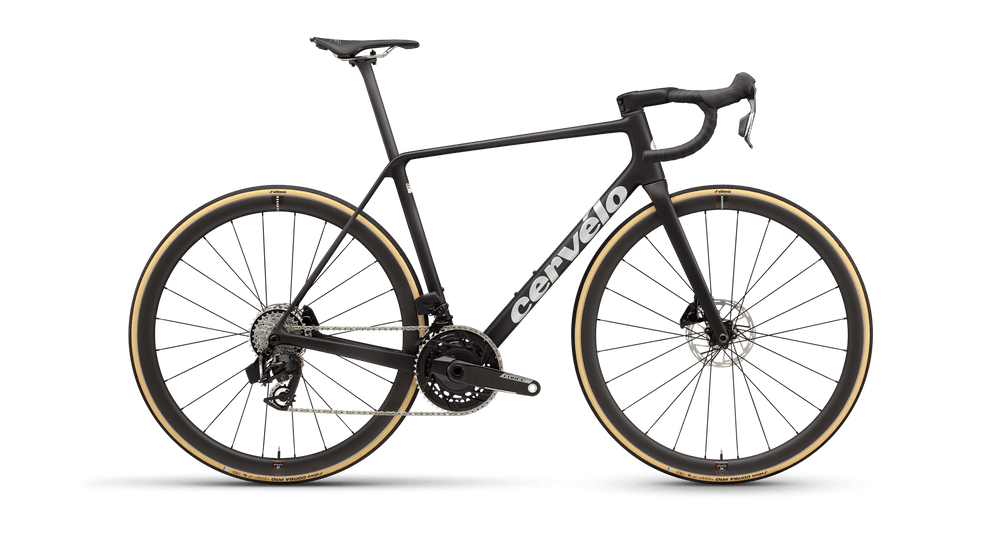

• Force AXS. SRAM Force AXS 12-speed, 48/35T, 10-33T. Power meter, Reserve 34|37TA on DT Swiss 240 hubs. 6.23kg.

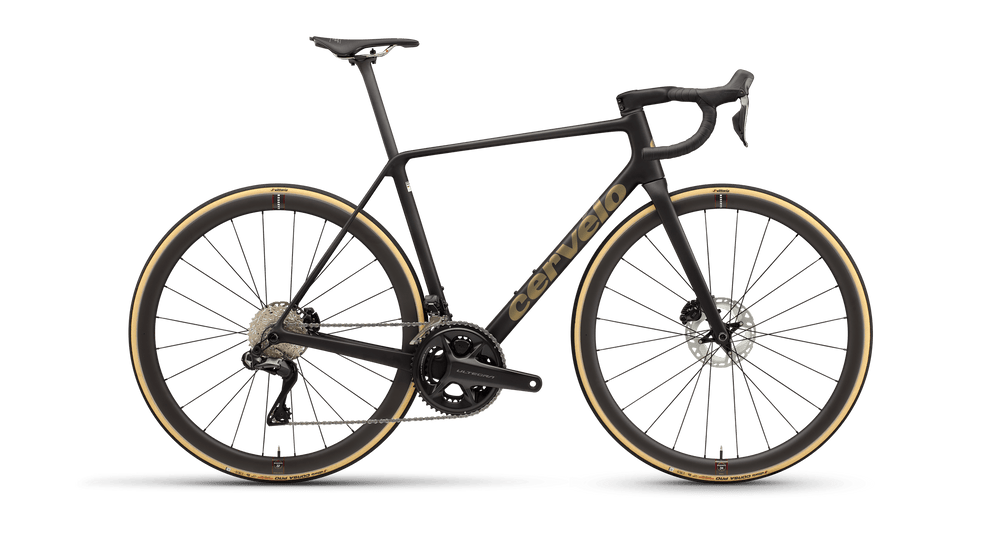

• Ultegra Di2. Shimano Ultegra Di2 12-speed, 52/36T, 11-34T. Power meter, Reserve 34|37TA on DT Swiss 240 hubs. 6.43kg.

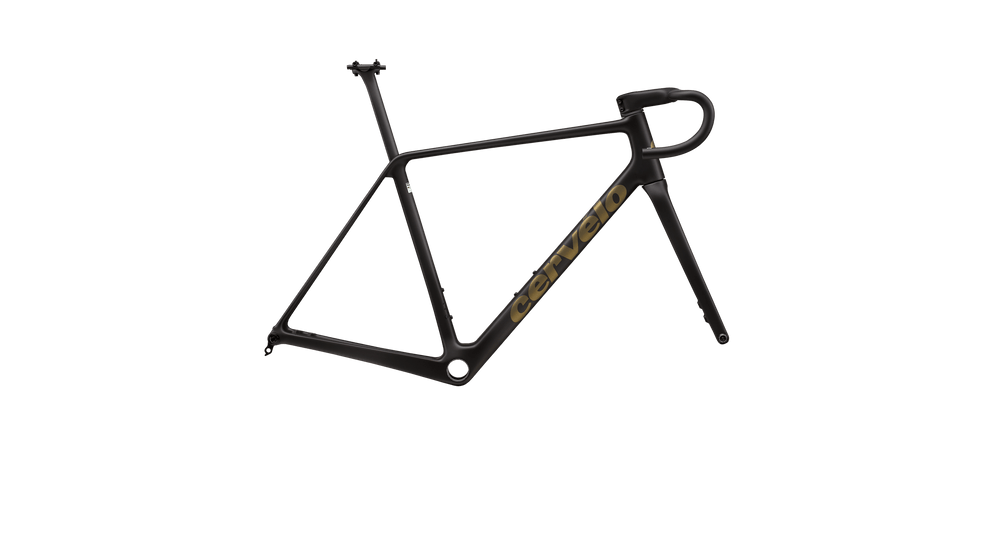

• Frameset. Frame, fork, HB18 cockpit and SP33 seatpost. Electronic drivetrains only. 1.54kg.

Key features

• 651g frame and 298g fork in a size 56

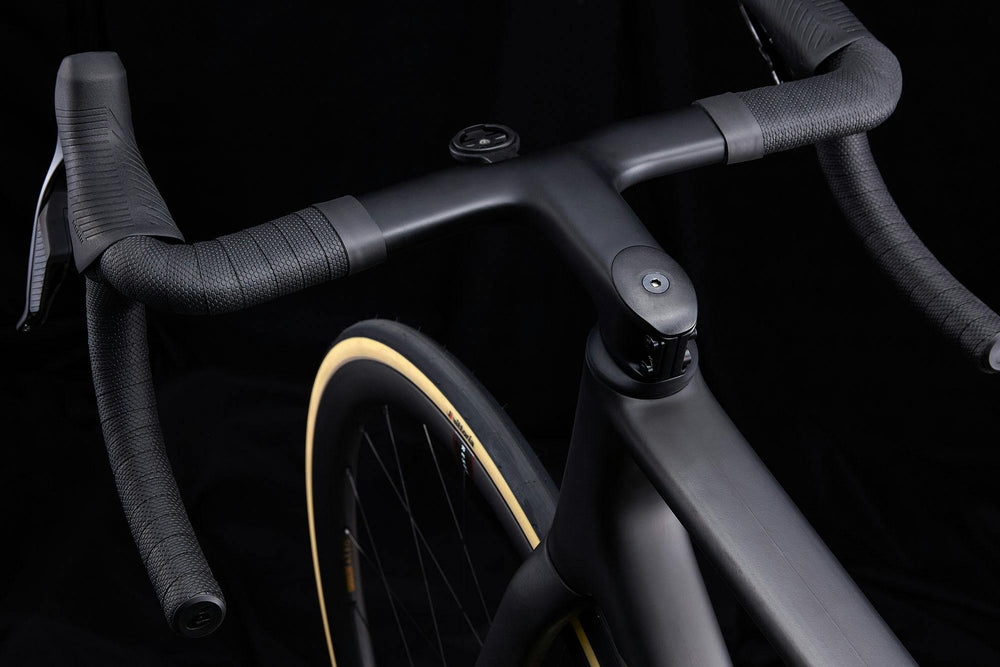

• HB18 one-piece carbon bar and stem, 15 size combinations fitted at no extra cost
• Reserve 34|37TA carbon wheelset
• Fit geometry matched to the S5
• Sizes 48 to 61

We do not hold every build in stock. Talk to us about sizing and availability and we will sort the rest.
